Neoden YY1 Pick and Place Machine

Pads Layout Basic Script frot Neoden YY1 Save as .bas X-Y-2023-Neoden-YY1.BAS Rename to .bas

This is a simple script just sort by side and add your feeder locations

Sample Neoden Program Just save as a CSV (Comma delimited) (*.csv) Sample-Neoden-YY1-Program.xlsx

****Do not save as UTF-8

Sample YY1 Top Side Dongle-Top.csv , Dongle-Top.xls

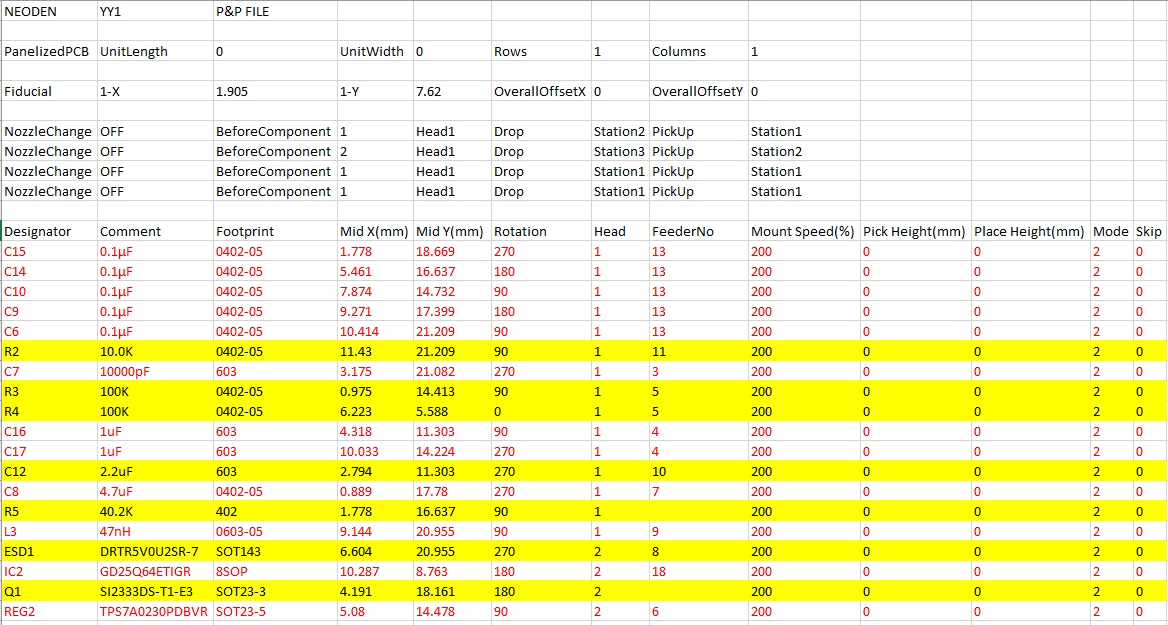

Bottom side Dongle-BTM.csv , Dongle-BTM.xls

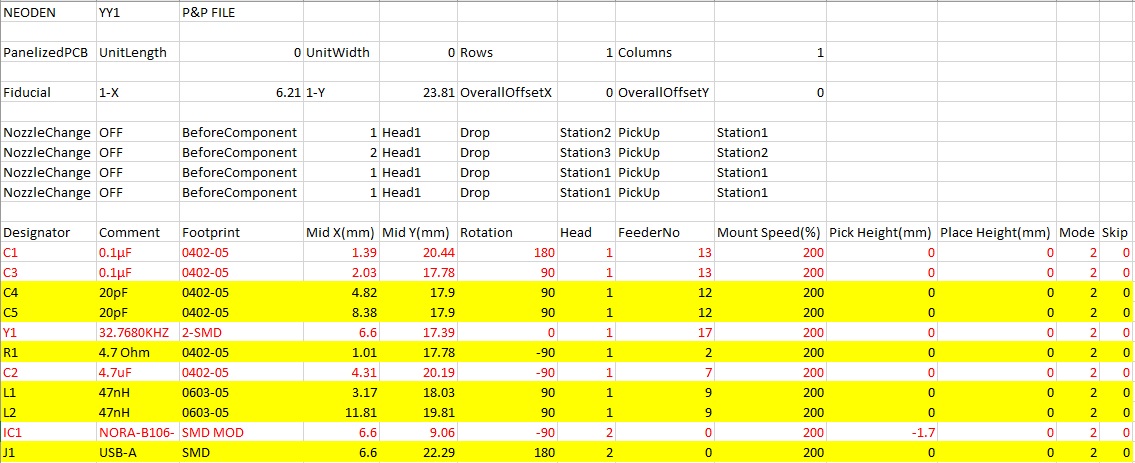

Neoden YY1 Pick&Place Example Program Top
